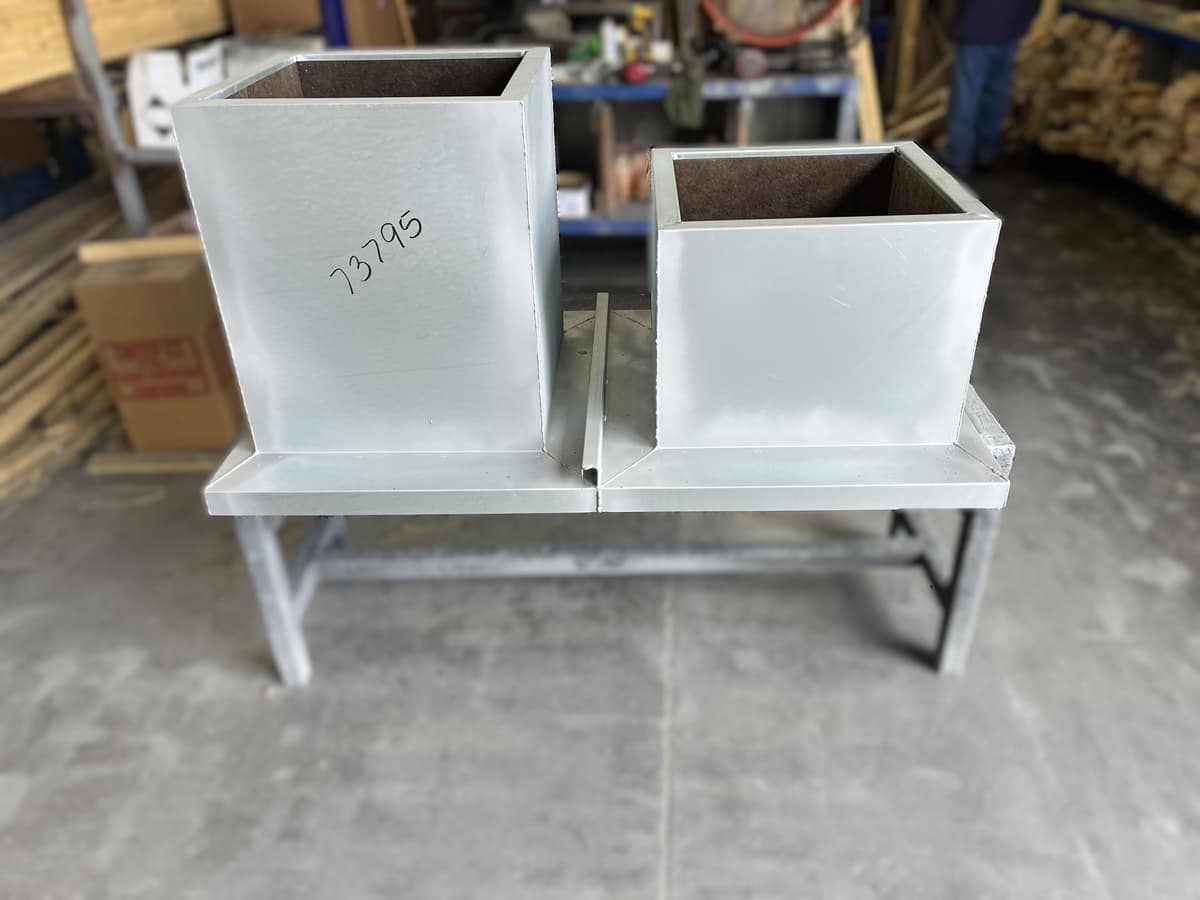

Double Curb Adapter
CCP-DCA
Standard Features
- 18ga. G90 min. construction
- Continuous welded seams coated with corrosion inhibiting compound.
- Neoprene gasket material provided for top mounting surface seal.
- Note: Top I.D. throat is approx. 3.5" less than the O.D.
Optional Features
- Heavy gauge galvanized steel
- 18ga. AZ55 "galvalume" construction
- .080 Aluminum construction
- 18ga. Stainless Steel, 304-2B construction
- Gasket material for existing curb perimeter surface

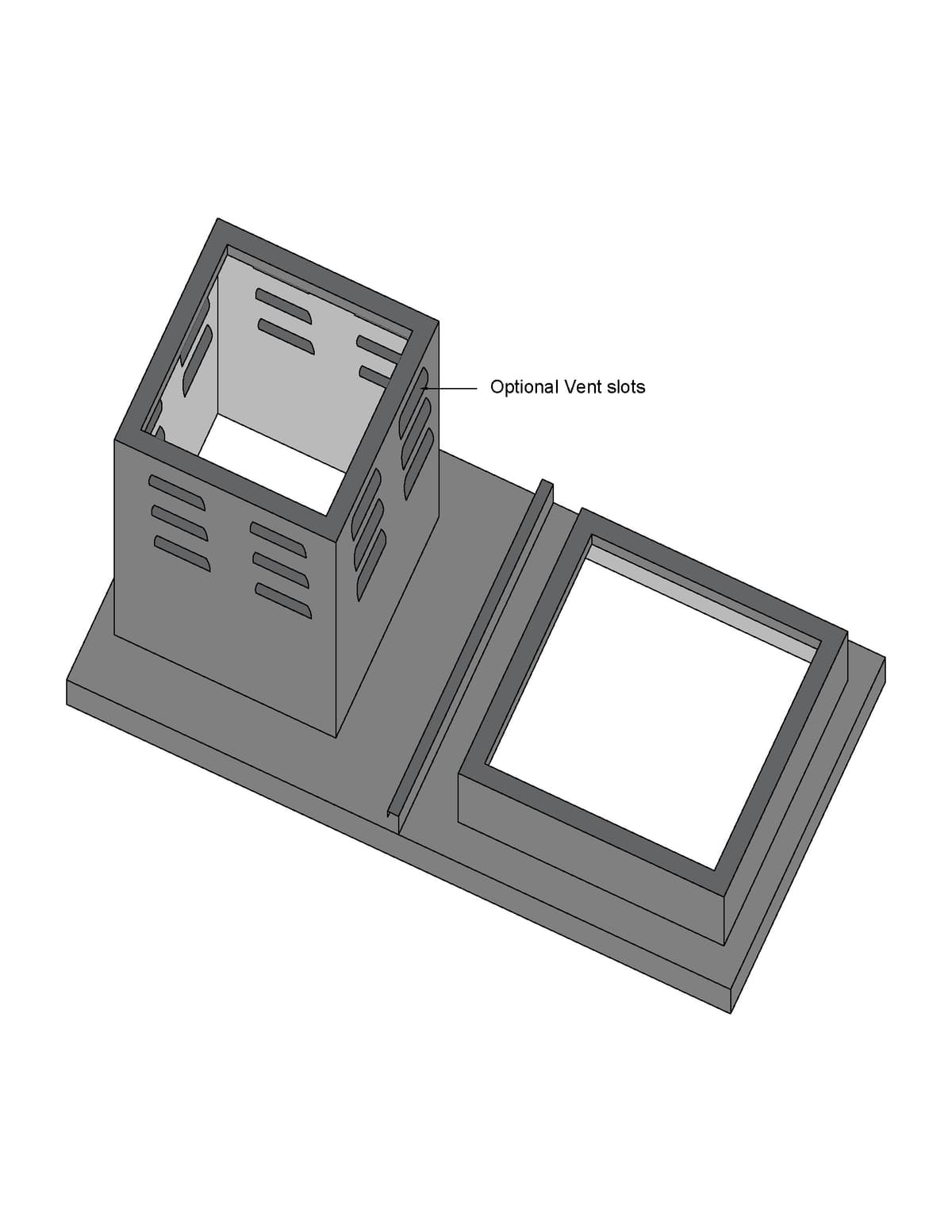

- Vent slots on Exhaust stack (H2 = min. 10" high)
- Vent slots on both stacks (H1&H2 = min. 10" high)
- Extended curb capping depth (specify size)
- Note: Vents slots are only available in 18ga. G90 OR 18ga. AZ55 construction.
